How to upload As-Con Imagery

How to upload As-Con Imagery

HazView allows for as-con aerial imagery to be stitched into the latest full-site image. This lets sites keep their site-wide image up to date without having to reprocess the entire site.

Step 1. Access the Settings and As-Con Overlay options

Navigate to Maps and GIS from within the Admin menu. If a user does not have admin privileges, they will not be able to access this menu.

Inside the Maps and GIS settings select Master Imagery Configuration and select As-Con Overlay on the right hand side (Figure 47).

Step 2. Select the source layer you will stitch over.

Each time you stitch in a new as-con, a new site-wide overlay will be created.

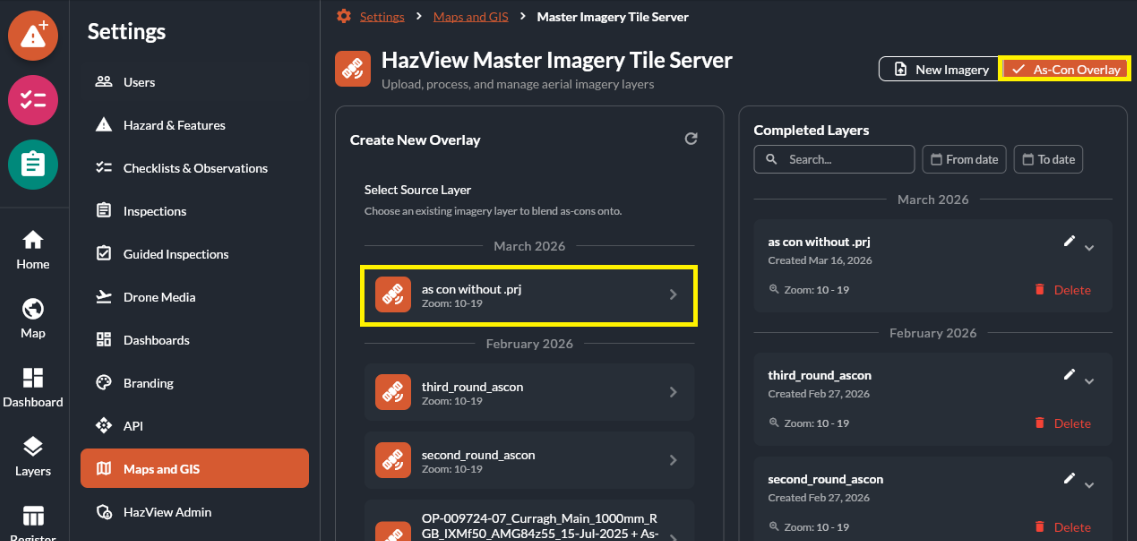

Figure 47 - Accessing as-con overlay settings in HazView

Step 3. Assign a New Layer Name

Select an appropriate name.
The base imagery + uploaded as-cons will show with this name on the home screen and in the maps.

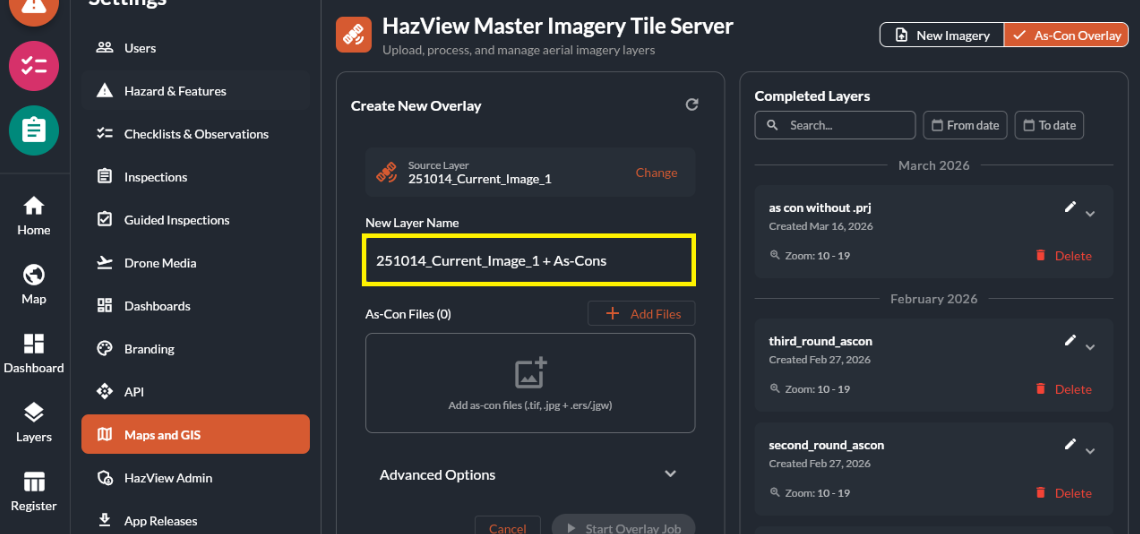

Figure 48 - Naming your layer

Step 4. Upload as-cons

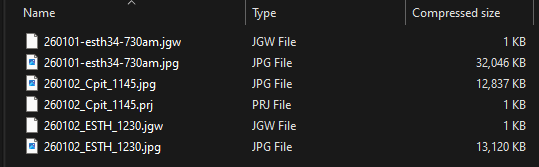

Stitch all your as-con flights together into a .zip.
For each flight would will need a .jpg and a .jgw.
  1. ZIP Archive (.zip)
    1. .jpg flight 1
    2. .jgw flight 1
    3. .jpg flight 2
    4. .jgw flight 2

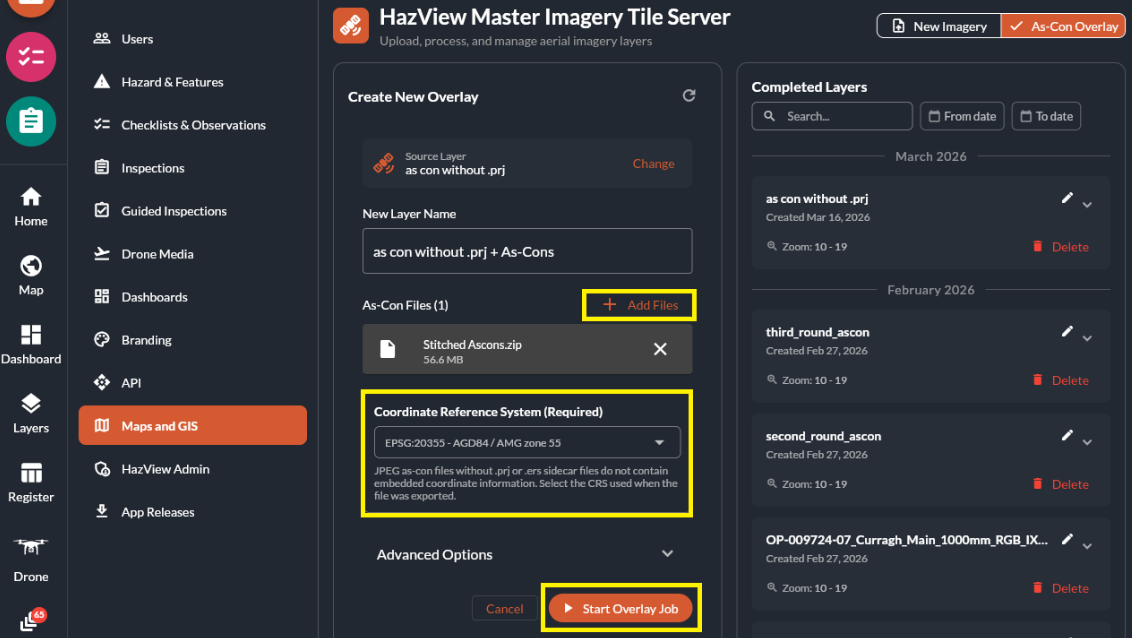

Once prepared, select "Add Files" and select this .zip.
You will then be asked to select a Coordinate Reference System (CRS).

Important: Double check your CRS is correct. Some sites have a specific coordinate system for their as-cons.

Figure 4

Step 5: Start Overlay Job

Once your as-cons and CRS is selected, click "Start Overlay Job".
Your files will begin to upload. Once it is finished, it will begin to process.
At this stage, you can navigate away from the page.

Processing usually takes 10-30 minutes.
You can check on the progress at any time.

Once uploaded, a new overlay image will be processed and created. This will automatically replace the latest imagery within HazView for general users. You can see if this has completed successfully in the completed layers module.

If users experience any issues with this process or would like support, they can contact the HazView support team at support@hazview.com or from https://support.hazview.com
